The Volvo EX30 is one of the most forward-thinking compact EVs on the road andn now, with the Torklift EcoHitch, you can equip it with a durable, invisible hitch solution for hauling bikes, cargo trays, or even small trailers.
This guide walks you through how to insall the EcoHitch on your 2025 - 2026 Volvo EX30. Whether you're doing it yourself or working with a shop, here's what to expect.
Step-by-Step Installation Instructions
Step 1: Prep the Vehicle
- Open the rear hatch.
- Twist and remove the rubber pads inside the hatch (Figure 1.1).

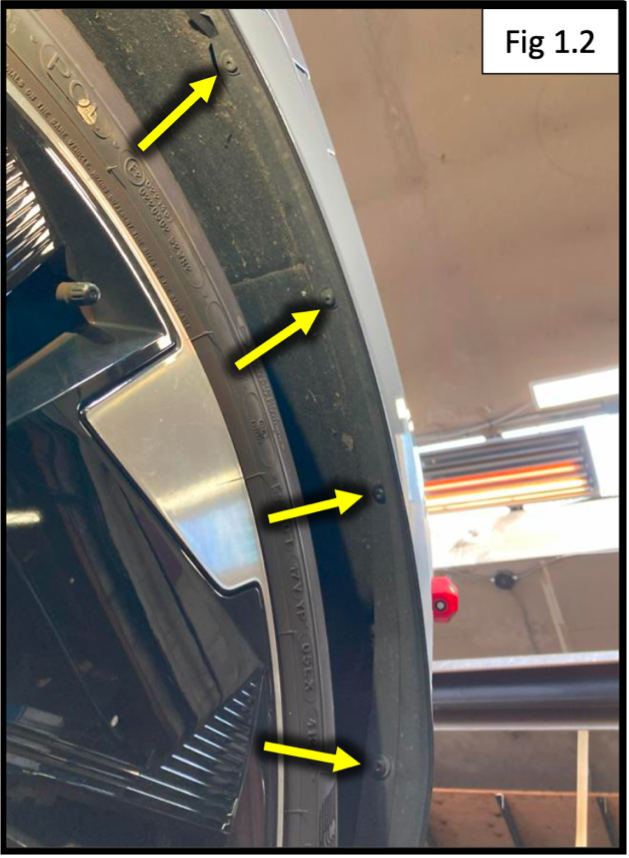

- In the rear wheel wells, remove the Torx screws, then pop out the inner trim (Figure 1.2).
- Remove the mudflaps and all screws behind and beneath them (Figures 1.3 & 1.4).

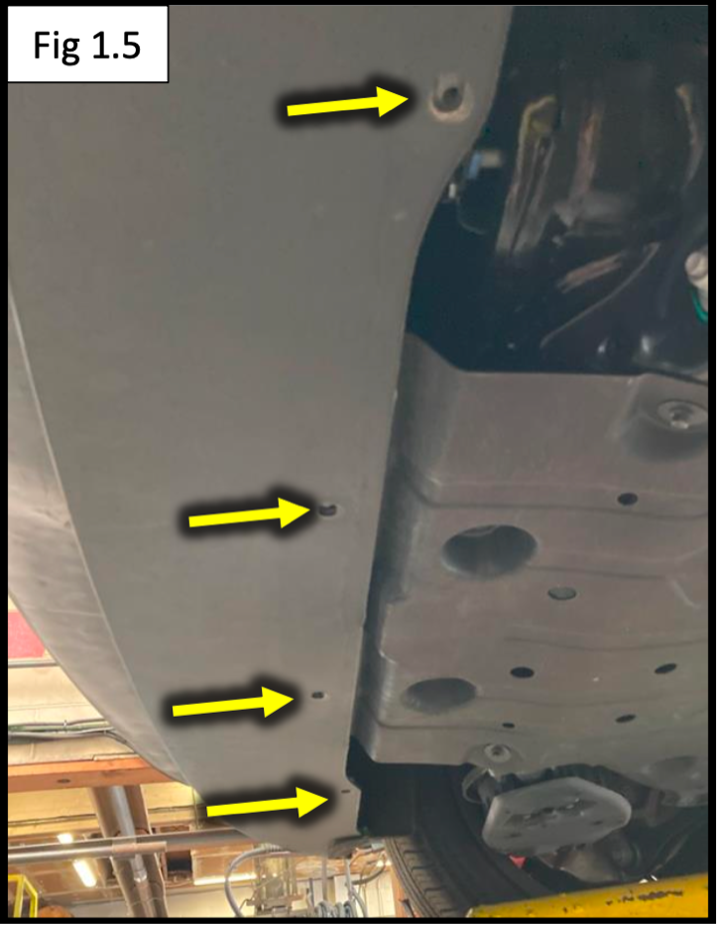

- Remove the screws along the bottom edge of the bumper (Figure 1.5).
Tip: Repeat this process on both driver and passenger sides.
Step 2: Remove the Rear Bumper
- Temporarily peel back the weather seal at the lower hatch area.
- Starting at the wheel wells, gently unclip the bumper, working toward the center.
- Disconnect two electrical harnesses on the passenger side (Figure 2.1).
- Set the bumper aside in a safe location.
Step 3: Remove the Rear Crossmember
- Remove the six factory nuts securing the rear crossmember (Figure 3.1).
- Take out the crossmember - it will not be reused.
- Lift the EcoHitch into position over the studs and snug the factory nuts to hold it in place while centering the hitch.
Step 4: Install Frame Supports and Secure the Hitch
- Slide the inner frame support plates into the frame through the slots in the hitch side plates (Figure 4.1).

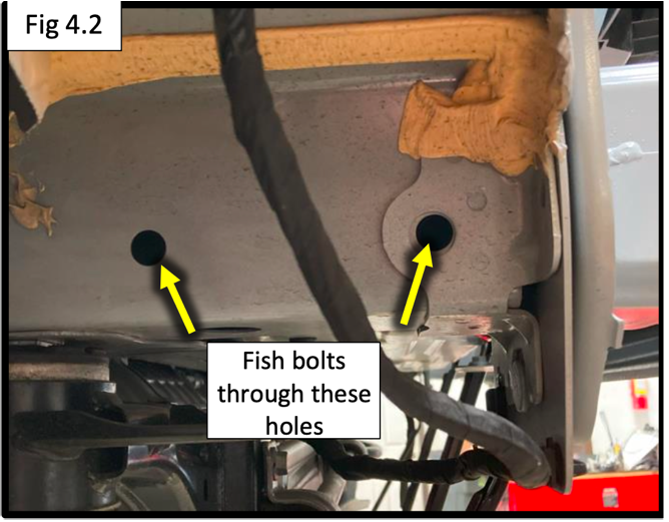

- Use a bolt fisher to route a 1/2" carriage bolt from the rear frame hole through the support and out the side (Figures 4.2 & 4.3).
- Once threaded, remove the fisher and secure the bolt with a flat washer, split lock washer, and hex nut.
- Repeat this process for the front hole and on the passenger side.

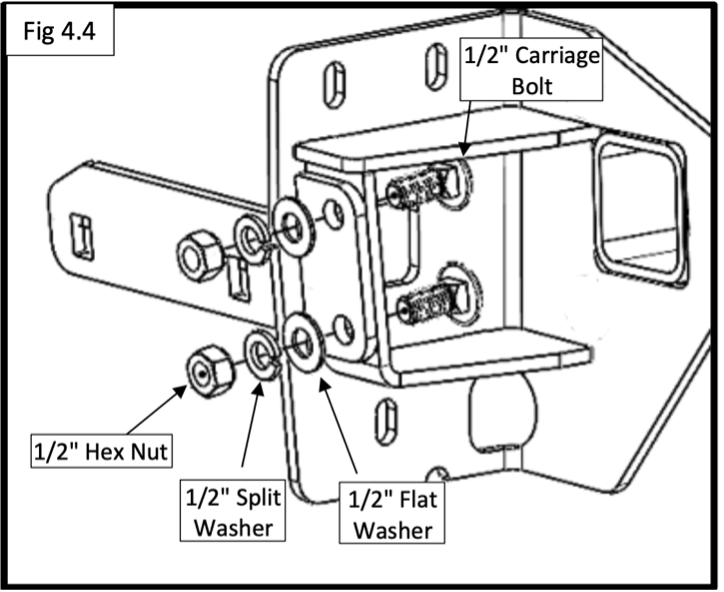

- Attach the support plates to the hitch side plates (Figure 4.4).
Torque Specs:
- Factory nuts (studs): 45 ft-lbs(61 Nm)
- All 1/2" hardware: 64 ft-lbs (88 Nm)
Step 5: Modify the Bumper + Install License Plate Flip Kit
- Using a reciprocating saw, cut a 4" x 8" opening in the bumper fascia centered below the license plate holder (Figure 5.1).

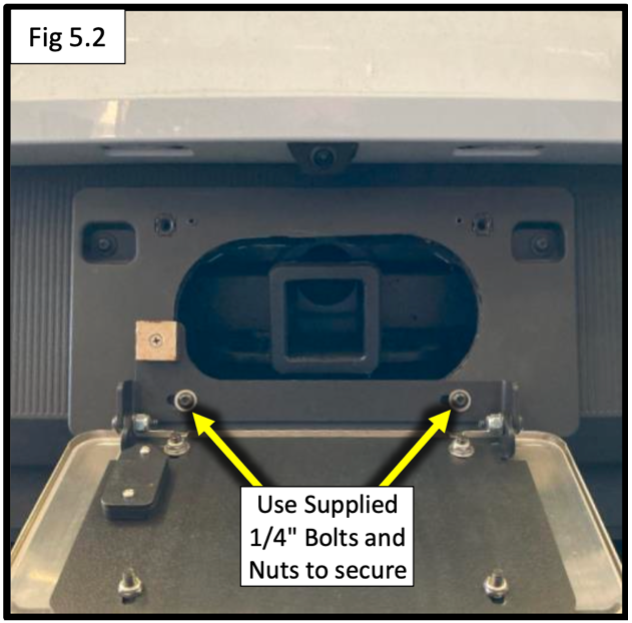

- Install the XA4000 License Plate Flip Kit over the opening (Figure 5.2).
- Use the supplied 1/4" button head screws and nuts to secure the kit.
Step 6: Reinstall the Bumper
- Reconnect the electrical harness.
- Reinstall the bumper using the original hardware.
- Press weather seal back into place.
- Check taillight functionality
Installation Complete!
Your Volvo EX30 is now equipped with the world's only rust-free stainless steel, Invisi EcoHitch, ready for racks, trays, or small trailer towing without compromising the look or performance of your EV.
